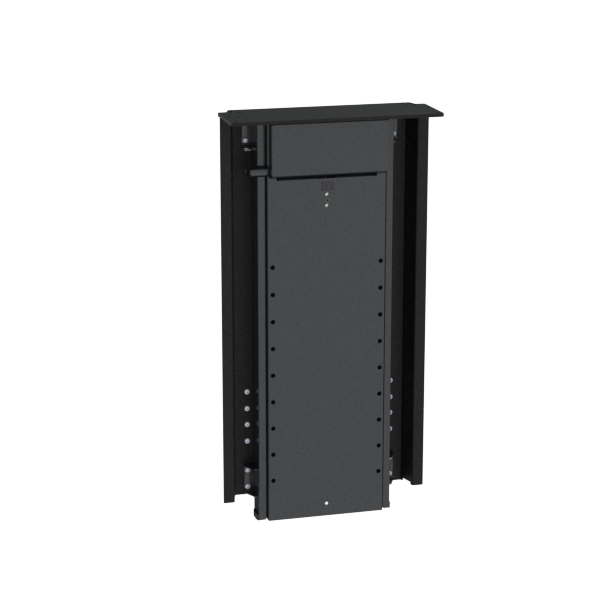

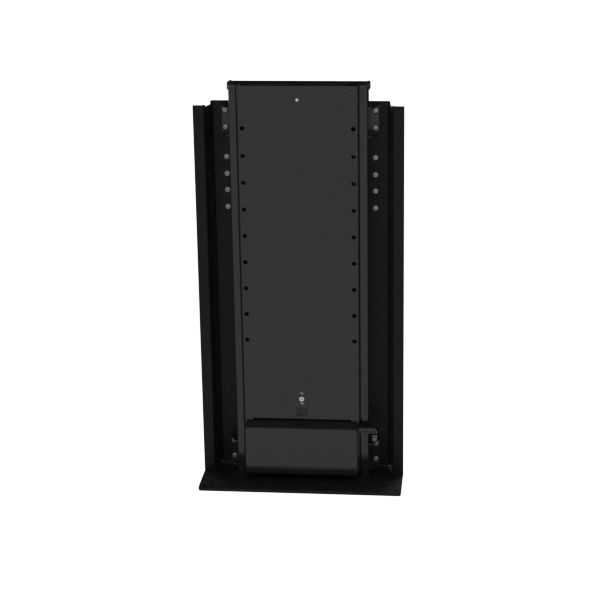

TS1000B Floor/Ceiling (50/29 kg)

Item Number: TS1000B 7BXX1 FM1000 B1

With a stroke of 1000 mm the TS1000B handles very large LCDs/plasmas.
Despite the big stroke, the unit only requires a build-in height of 750 mm.

Controlled with rockerswitch, but remote control with RF is optional.

Peak load of 50 kg and working load of 45/29 kg. (see specifications).

Show More

With a stroke of 1000 mm the TS1000B handles very large LCDs/plasmas.
Despite the big stroke, the unit only requires a build-in height of 750 mm.

Controlled with rockerswitch, but remote control with RF is optional.

Peak load of 50 kg and working load of 45/29 kg. (see specifications).


A Product can consist of several components.
Product Number: TS1000B 7BXX1 FM1000 B1
Total Components: 2
Amount Component Description
1 TS1000B 7BXX1 75-175 cm/45 kg, Electric Flat Lift, black
1 FM1000 B1 Bracket TS1000, floor mounting
If you wanna know more about the product data for this product click the file below.

The assembly instructions for this product can be found below.

Technical drawing for this product can be downloaded here. Please note that there is both a pdf and a dwg version.

Technical Drawings DWG
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved

FAQ

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Specs


Minimum Height: 750 mm.Maximum Height: 1750 mm.Max Stroke: 1000 mm.Adjustable Stroke: YesMax Load: 45 kg.Mounted upside down: 29 kg.Peak Load: 50 kg. (Motor thrust power)
Colour: BlackReverse Function: NoInputpower: 110-240 VAC/50-60 Hz AC Plug: EU/UK/US/NZ/AUS
RF Remote System: Optional R147880 + R315290Lidlifter: YesMounting Brackets: Optional MB002/MB003VESA: 200x200,200x100,600x400**,600x200**,600x100**,400x400**,400x300**,400x400***,400x200**,400x100**,300x300**,400x300***,400x200***,400x100***,300x300*****: only with MB002 mounted
***: only with MB003 mounted
