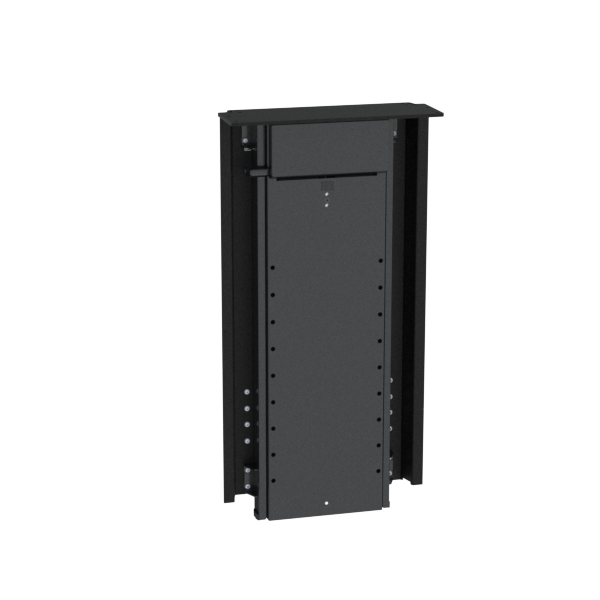

TS1000A Floor/Ceiling (100/29 kg)

Item Number: TS1000A 7BXX1 FM1000 B1

With a stroke of 1000 mm. the TS1000A handles very large LCDs/plasmas.
Despite the big stroke, the unit only requires a build-in height of 750 mm.

Featured with anti-squeeze safety protection. If the moving parts of the lift or the LCD/plasma mounted on the lift meet an obstacle in the down-going motion, the lift will stop and reverse.
The pressure given before reversing is equal to the weight of the TV that is mounted.

Remote controlled with RF.
Peak load of 100 kg and working load of 65/29 kg. (see specifications).

Video support:

  • How to mechanically adjust endstops, click here
  • How to pair remote, click here
Show More

With a stroke of 1000 mm. the TS1000A handles very large LCDs/plasmas.
Despite the big stroke, the unit only requires a build-in height of 750 mm.

Featured with anti-squeeze safety protection. If the moving parts of the lift or the LCD/plasma mounted on the lift meet an obstacle in the down-going motion, the lift will stop and reverse.
The pressure given before reversing is equal to the weight of the TV that is mounted.

Remote controlled with RF.
Peak load of 100 kg and working load of 65/29 kg. (see specifications).

Video support:

  • How to mechanically adjust endstops, click here
  • How to pair remote, click here

A Product can consist of several components.
Product Number: TS1000A 7BXX1 FM1000 B1
Total Components: 2
Amount Component Description
1 TS1000A 7BXX1 75-175 cm/100 kg, Electric Flat Lift, black
1 FM1000 B1 Bracket TS1000, floor mounting
If you wanna know more about the product data for this product click the file below.

Technical drawing for this product can be downloaded here. Please note that there is both a pdf and a dwg version.

Technical Drawings DWG
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved

FAQ

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Specs


Minimum Height: 750 mm.Maximum Height: 1750 mm.Max Stroke: 1000 mm.Adjustable Stroke: YesMax Load: 65 kg. Mounted upside down: 29 kg.Peak Load: 100 kg. (Motor thrust power)
Colour: BlackReverse Function: YesInputpower: 110-240 VAC/50-60 Hz AC Plug: EU/UK/US/NZ/AUS
RF Remote System: YesLidlifter: YesMounting Brackets: YesVESA: 600x400,600x200,600x100,400x400,400x300,400x200,400x100,300x300,200x200,200x100
