Flat Lift combination TS700C_x4

Item Number: TS700C_x4

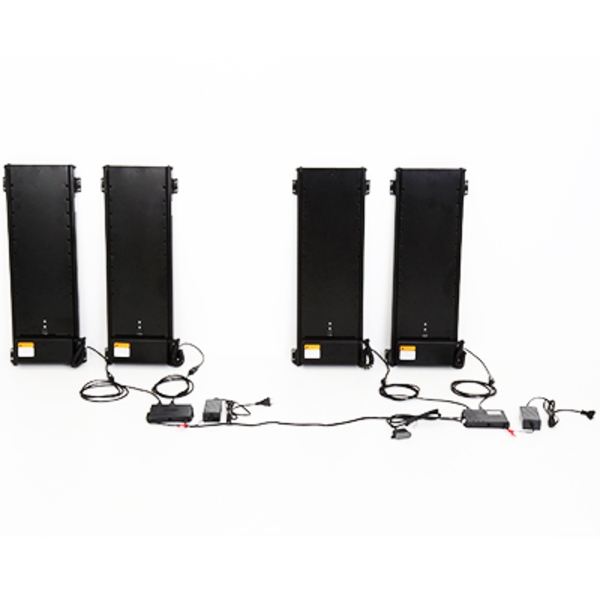

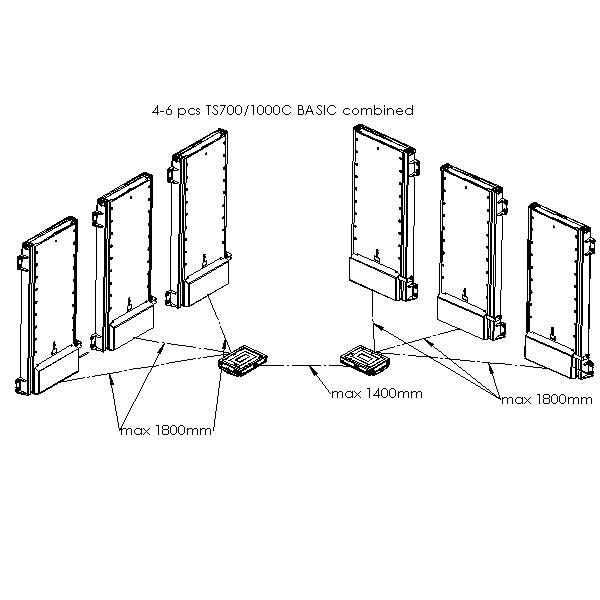

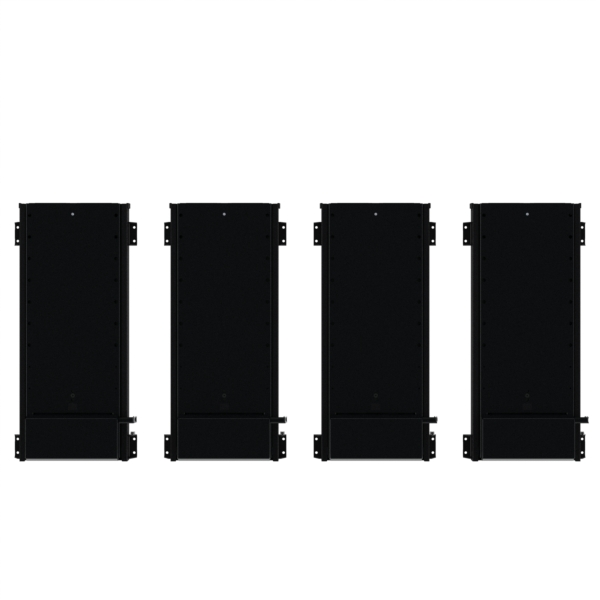

The TS700C Basic is a powder coated steel flat lift with electronic setting of min. and max height as well as anti-squeeze function in both directions.4 synchronized lifts, all lifts with accessible hole pattern in the front.RF remote control optionalAnti-squeeze: The pressure given before reverting is equal to the weight of the cabinet mounted.Can be mounted upside down Download assembly instructionDownload technical drawings:TS700C_Basic.pdf Show More
A Product can consist of several components.
Product Number: TS700C_x4
Total Components: 9
Amount Component Description
4 TS700C BASIC Electric Flat Lift, black
4 R344410 Extender wire
1 7XPOWMS POW Control 4-6
Download files underneath related to the product:


Technical Drawings DWG

FAQ

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Specs


Minimum Height: 600 mm. Maximum Height: 1300 mm. Max Stroke: 700 mm. Adjustable Stroke: True Max Load: 55 kg. -- Mounted upside down: 29 kg. Peak Load: 100 kg.
Colour: Black Reverse Function: True Inputpower: 110-240 VAC/50-60 Hz AC Plug: EU/UK/US/NZ/AUS Manual Switch: False
RF Remote System: IR Remote System: Optional R137380 Lidlifter: Yes Mounting Brackets: Yes VESA: 400x400,400x200,400x100,300x300
