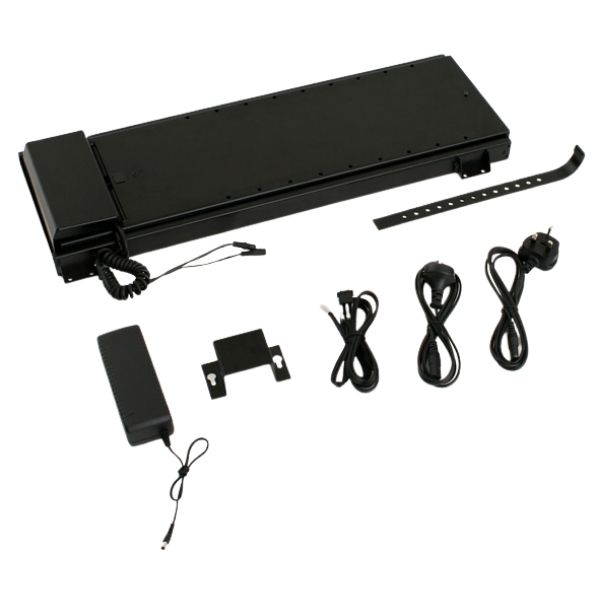

75-175 cm/45 kg, Electric Flat Lift, black
Item Number: TS1000B 7BXX1

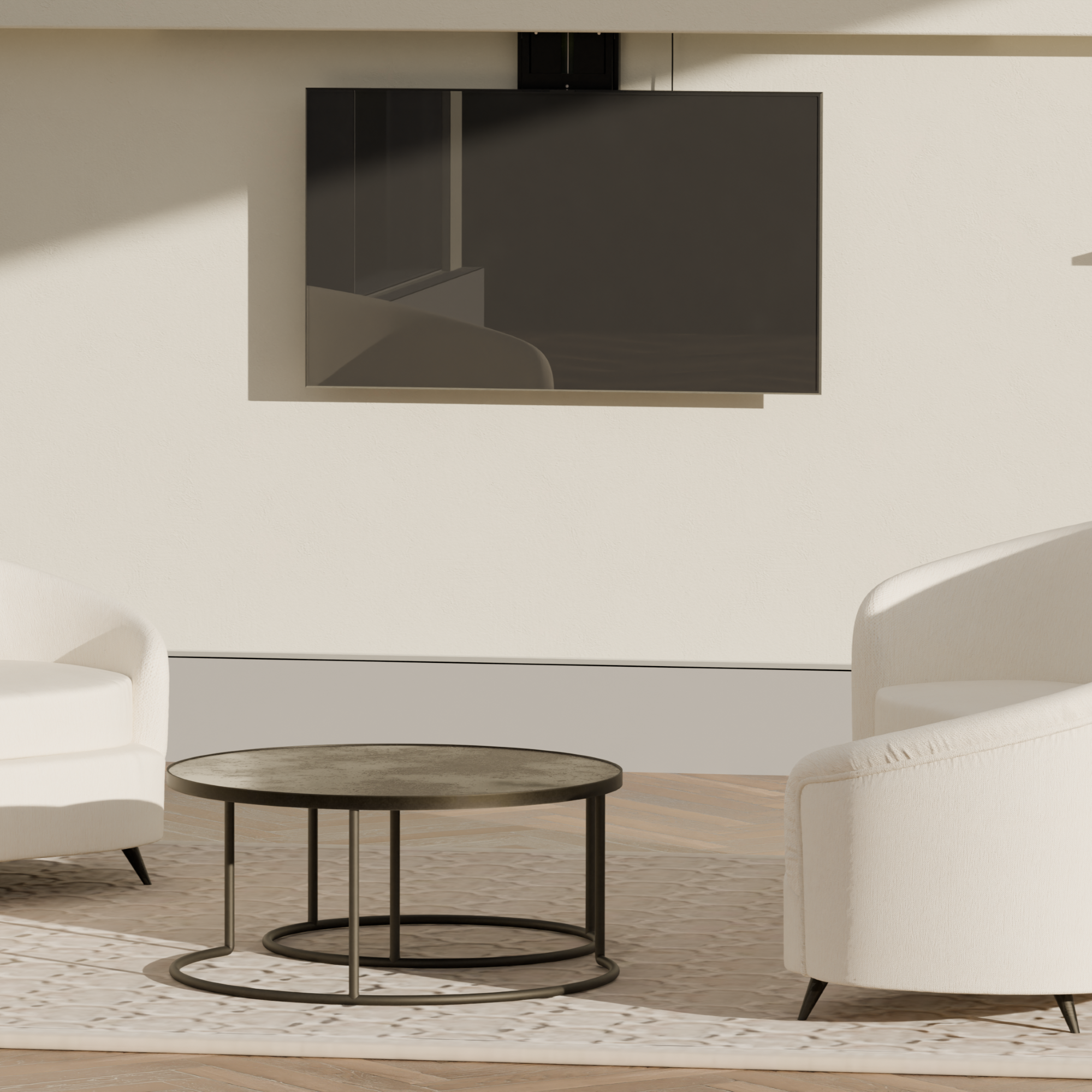

With a stroke of 1000 mm the TS1000B handles very large LCDs/plasmas.
Despite the big stroke, the unit only requires a build-in height of 750 mm.

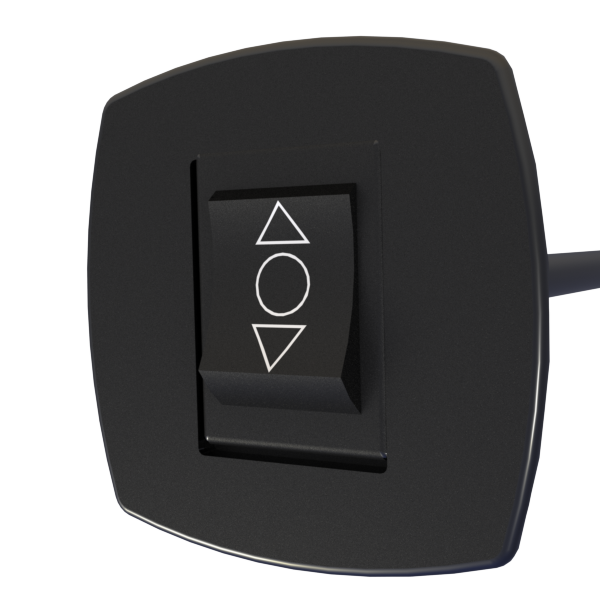

Controlled with rockerswitch, but remote control with RF is optional.
Peak load of 50 kg and working load of 45/29 kg. (see specifications).
With a stroke of 1000 mm the TS1000B handles very large LCDs/plasmas.
Despite the big stroke, the unit only requires a build-in height of 750 mm.
Controlled with rockerswitch, but remote control with RF is optional.
Peak load of 50 kg and working load of 45/29 kg. (see specifications).
A Product can consist of several components.
Product Number: TS1000B 7BXX1
Total Components: 1
Product Number: TS1000B 7BXX1
Total Components: 1
| Amount | Component | Description |
|---|---|---|
| 1 | TS1000B 7BXX1 | 75-175 cm/45 kg, Electric Flat Lift, black |
If you wanna know more about the product data for this product click the file below.

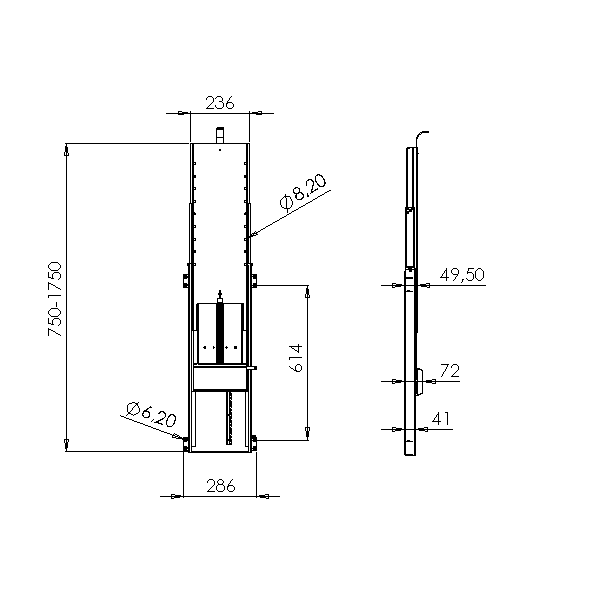

Technical drawing for this product can be downloaded here.
Please note that there is both a pdf and a dwg version.
Technical Drawings DWG
Technical Drawings DWG
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved
FAQ
