Flat Lift combination TS700C_x3

Item Number: TS700C_x3

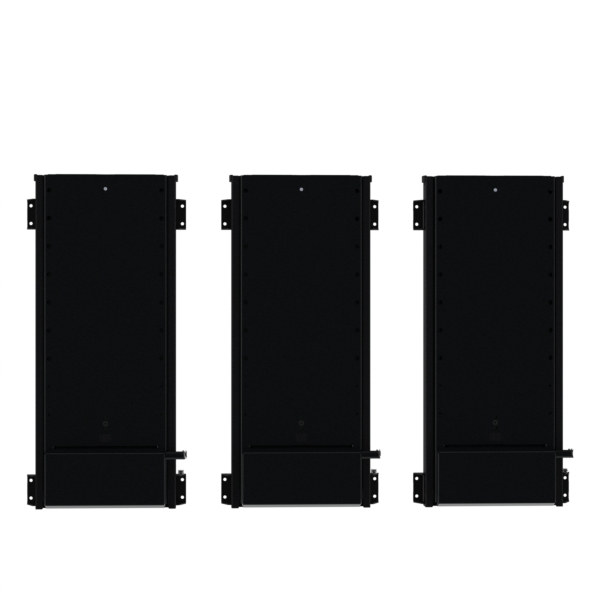

The TS700C Basic is a powder coated steel flat lift with electronic setting of min. and max height as well as anti-squeeze function in both directions.

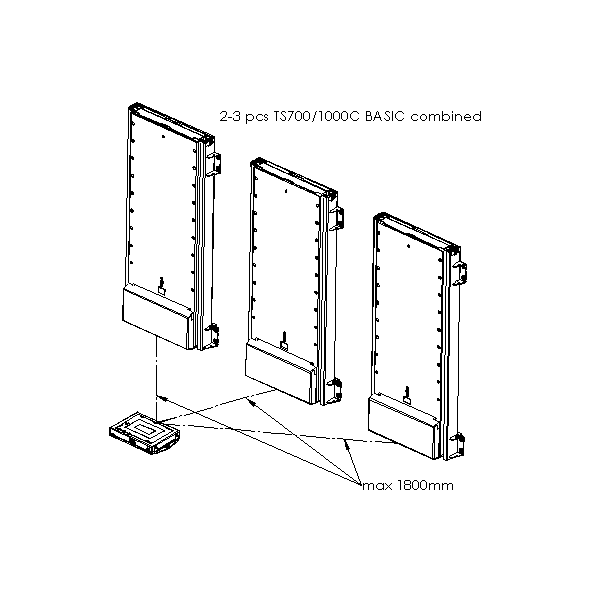

3 synchronized lifts, all lifts with accessible hole pattern in the front.

RF remote control optional

Anti-squeeze: The pressure given before reverting is equal to the weight of the cabinet mounted.

Can be mounted upside down.

Show More

The TS700C Basic is a powder coated steel flat lift with electronic setting of min. and max height as well as anti-squeeze function in both directions.

3 synchronized lifts, all lifts with accessible hole pattern in the front.

RF remote control optional

Anti-squeeze: The pressure given before reverting is equal to the weight of the cabinet mounted.

Can be mounted upside down.


A Product can consist of several components.
Product Number: TS700C_x3
Total Components: 7

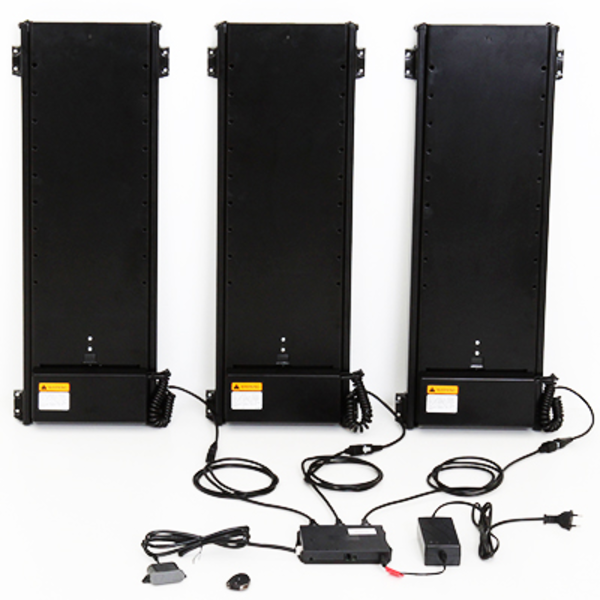

Amount Component Description
3 TS700C BASIC Electric Flat Lift, black
3 R344410 Extender wire
1 7XPOWM POW Control 1-3
If you wanna know more about the product data for this product click the file below.

The assembly instructions for this product can be found below.

Technical drawing for this product can be downloaded here. Please note that there is both a pdf and a dwg version.

Technical Drawings DWG
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved

FAQ

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Specs


Minimum Height: 600 mm.Maximum Height: 1300 mm.Max Stroke: 700 mm.Adjustable Stroke: YesMax Load: 125 kg.Mounted upside down: 29 kg.Peak Load: 100 kg. (Motor thrust power)
Colour: BlackReverse Function: YesInputpower: 110-240 VAC/50-60 Hz AC Plug: EU/UK/US/NZ/AUS
RF Remote System: YesLidlifter: YesMounting Brackets: YesVESA: 400x400,400x200,400x100,300x300
