75-275 cm, Electric Flat Lift, black

Item Number: TS2000C

The TS2000C is Plug & Play powder coated steel flat lift with electronic setting of min. and max. height as well as anti-squeeze function in both directions.

RF remote optional

Anit-squeeze: The pressure given before reverting is equal to the weight of the screen mounted.

The product has a very high lifting travel (2000mm). With the use of three synchronized basic lift units, two at ground level and one in center, we get a power full function. 750 to 2750 mm is an eye-catcher.

Show More

A Product can consist of several components.
Product Number: TS2000C
Total Components: 10
Amount Component Description
1 CB003 B1 TS2000C Bracket kit
3 TS1000C BASIC Electric Flat Lift, black
3 R344410 Extender wire
1 R315290 Remote Emitter, 1 motor
1 7XPOWM POW Control 1-3
1 MB004 B1 Monitor bracket, TS1000/2000
If you wanna know more about the product data for this product click the file below.
The assembly instructions for this product can be found below.

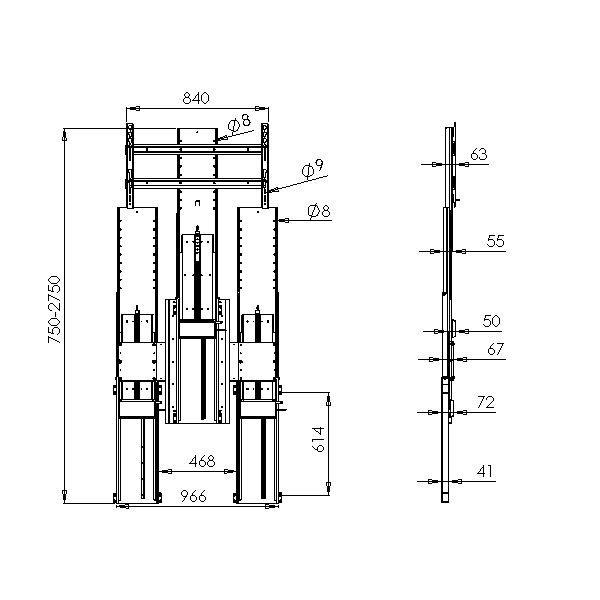

Technical drawing for this product can be downloaded here. Please note that there is both a pdf and a dwg version.

Technical Drawings DWG
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved




Minimum Height: 750 mm.Maximum Height: 2750 mm.Max Stroke: 2000 mm. Adjustable Stroke: YesMax Load: 30kg well balanced 65” screen at full heightMounted upside down: 0 kg.Peak Load: 30 kg.
Colour: BlackReverse Function: NoAnti-squeeze system up: YesAnti-squeeze system down: YesInputpower: 110-240 VAC/50-60 HzAC Plug: EU/UK/US/NZ/AUS
RF Remote System: YesLidlifter: YesMounting Brackets: IncludedVESA: 200x200,200x100,+flex
