64-110 cm/50 kg, Electric Flat Lift, silver

Item Number: TS460B 7SXX1 MB460 S1

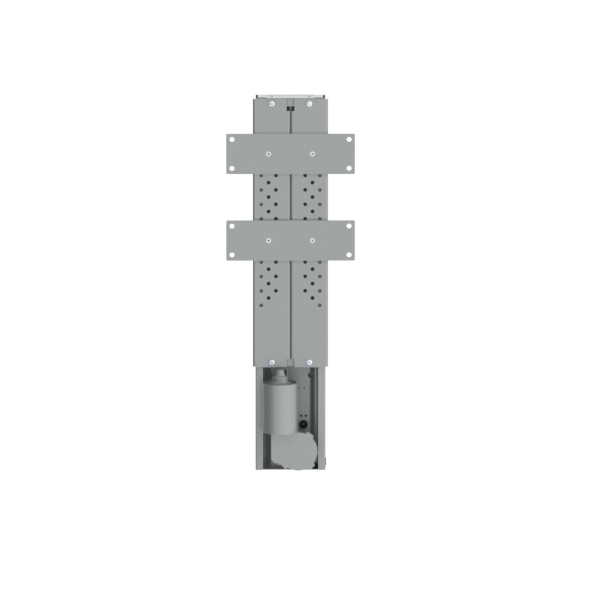

The TS460B TV lift is a slim and compact product. Only 40 mm between wall and screen.
The 460 mm. stoke will handle screens of up to 30 inches (lower than 460 mm).
Lifting capacity 50 kg. Max. load: 29 kg (mounted upside down).

Show More

The TS460B TV lift is a slim and compact product. Only 40 mm between wall and screen.
The 460 mm. stoke will handle screens of up to 30 inches (lower than 460 mm).
Lifting capacity 50 kg. Max. load: 29 kg (mounted upside down).

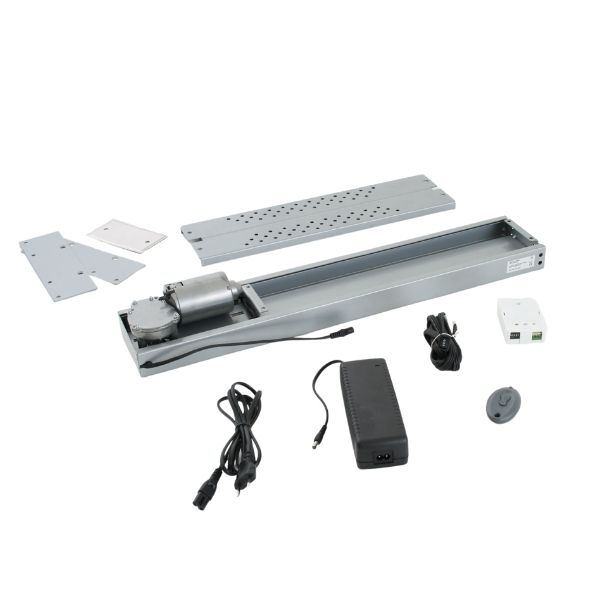

A Product can consist of several components.
Product Number: TS460B 7SXX1 MB460 S1
Total Components: 1
Amount Component Description
1 TS460B 7SXX1 Electric Flat Lift, silver
If you wanna know more about the product data for this product click the file below.

The assembly instructions for this product can be found below.

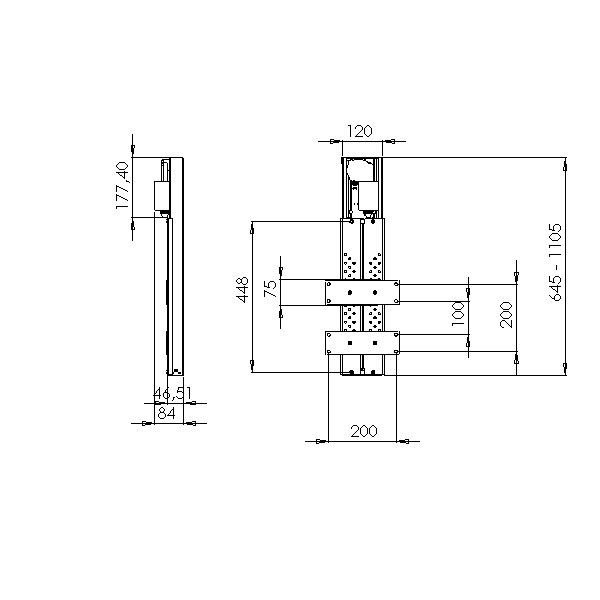

Technical drawing for this product can be downloaded here. Please note that there is both a pdf and a dwg version.

Technical Drawings DWG
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved

FAQ

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Specs


Minimum Height: 645 mm.Maximum Height: 1105 mm.Max Stroke: 460 mm.Adjustable Stroke: NoMax Load: 50 kg.Mounted upside down: 29 kg.
Colour: SilverReverse Function: NoInputpower: 110-240 VAC/50-60 Hz AC Plug: EU/UK/US/NZ/AUS
RF Remote System: YesLidlifter: NoMounting Brackets: Optional MB460VESA: 200x200*,200x100*,100x100*,75x75*,50x50**: Only with MB460 mounted
