75-175 cm/30kg, Electric Flat lift Lift, black

Item Number: TS1000D 7BXX1

With a stroke of 1000 mm the TS1000D handles large LCDs/plasmas.

The load capacity of the lift can set to 4 different levels:

  • Level 1 : 0 - 7,5 kg
  • Level 2 : 7,5 - 15 kg
  • Level 3 : 15 - 22,5 kg
  • Level 4 : 22,5 - 30 kg

The adjustable load capacity allows the lift to be used in many different applications, while not compromising safety. The lifting capacity is set in the included control kit, and can be changed easily and quickly.

Despite the big stroke, the unit only requires a build-in height of 750 mm.

The stroke can also be adjusted to limit the stroke height and/or the stroke drop.

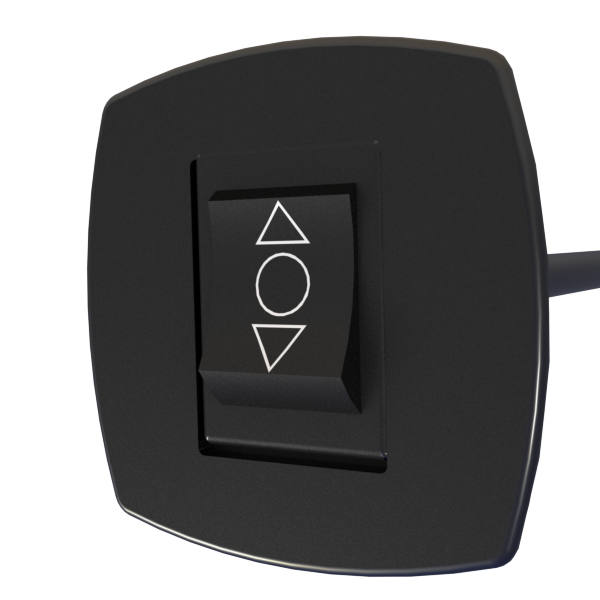

Controlled with rockerswitch or remote control.

Show More

With a stroke of 1000 mm the TS1000D handles large LCDs/plasmas.

The load capacity of the lift can set to 4 different levels:

  • Level 1 : 0 - 7,5 kg
  • Level 2 : 7,5 - 15 kg
  • Level 3 : 15 - 22,5 kg
  • Level 4 : 22,5 - 30 kg

The adjustable load capacity allows the lift to be used in many different applications, while not compromising safety. The lifting capacity is set in the included control kit, and can be changed easily and quickly.

Despite the big stroke, the unit only requires a build-in height of 750 mm.

The stroke can also be adjusted to limit the stroke height and/or the stroke drop.
Controlled with rockerswitch or remote control.

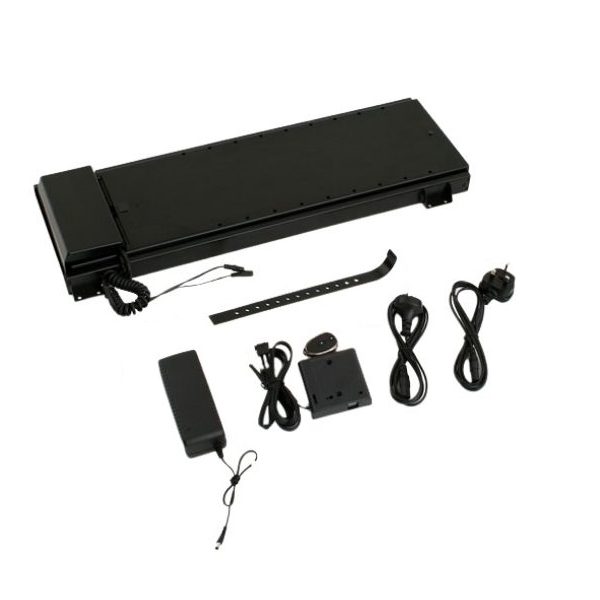

A Product can consist of several components.
Product Number: TS1000D 7BXX1
Total Components: 3
Amount Component Description
1 TS1000B 7BXX1 75-175 cm/45 kg, Electric Flat Lift, black
1 159370 Control Kit, TS - D models
1 R315290 Remote Emitter, 1 motor
If you wanna know more about the product data for this product click the file below.
The assembly instructions for this product can be found below.

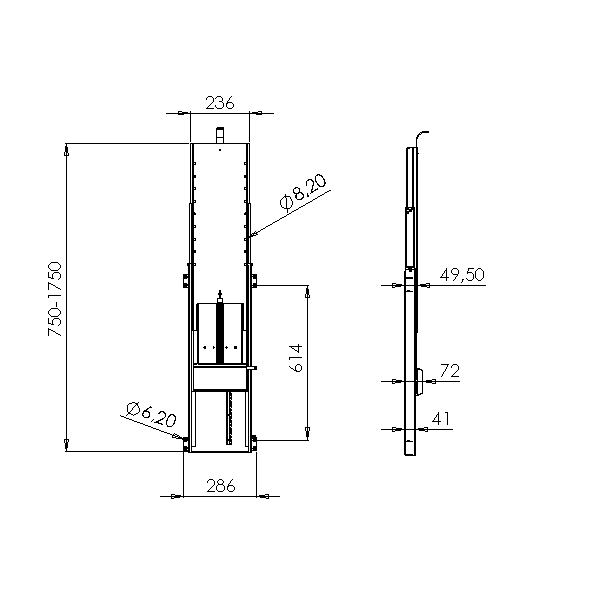

Technical drawing for this product can be downloaded here. Please note that there is both a pdf and a dwg version.
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved

FAQ

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Specs


No specific specs are available for this product
