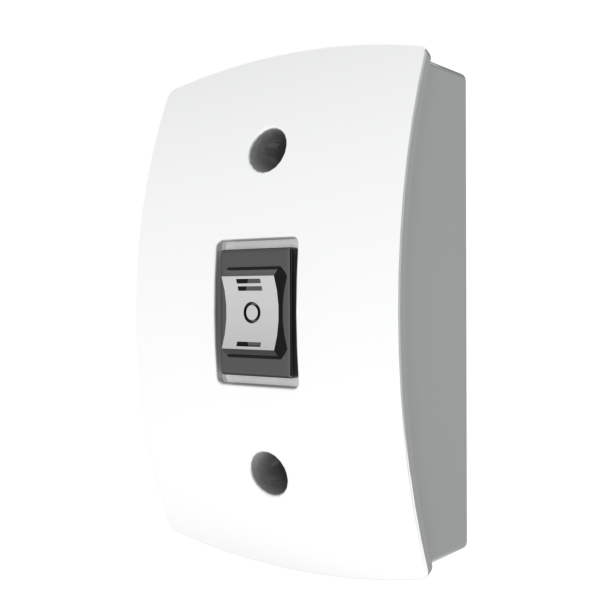

30-80 cm window - Wall switch - Momentary

Item Number: NF110S 30-80

Use an electric window opener to simply gain comfort or instead of a rod/cord system when windows are out of reach.

It can be as helpful for those who are young, fit and able as it can for disabled for elderly people.
Simple to use either by wall mounted switch or by remote control.

The electric window opener operates by the "knee joint" principle. This means that the opener is stronger in the fully open and fully closed position than in-between.

This acts as an anti-squeeze safety measure and further ensures that the window seal is pressed tightly when the window is fully closed.

The minimum pull-push pressure is 8 kg.
The opener opens 12cm at a speed of 8mm/sec.

The motor runs on 24V DC, with end stops integrated inside the unit. The opener is possible to integrate in home automation systems.
A three meter wire is included.

Show More

Use an electric window opener to simply gain comfort or instead of a rod/cord system when windows are out of reach.

It can be as helpful for those who are young, fit and able as it can for disabled for elderly people.
Simple to use either by wall mounted switch or by remote control.

The electric window opener operates by the "knee joint" principle. This means that the opener is stronger in the fully open and fully closed position than in-between.

This acts as an anti-squeeze safety measure and further ensures that the window seal is pressed tightly when the window is fully closed.

The minimum pull-push pressure is 8 kg.
The opener opens 12cm at a speed of 8mm/sec.

The motor runs on 24V DC, with end stops integrated inside the unit. The opener is possible to integrate in home automation systems.
A three meter wire is included.


A Product can consist of several components.
Product Number: NF110S 30-80
Total Components: 4
Amount Component Description
1 111 Electric opener, Basic
1 901 Safety Panel
1 114 Power supply, Window opener 110/220
1 813 Mounting Set B
If you wanna know more about the product data for this product click the file below.
The assembly instructions for this product can be found below.
Technical drawing for this product can be downloaded here. Please note that there is both a pdf and a dwg version.
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved

FAQ

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Specs


No specific specs are available for this product
