Flat Lift combination TS1000C_x2
Item Number: TS1000C_x2

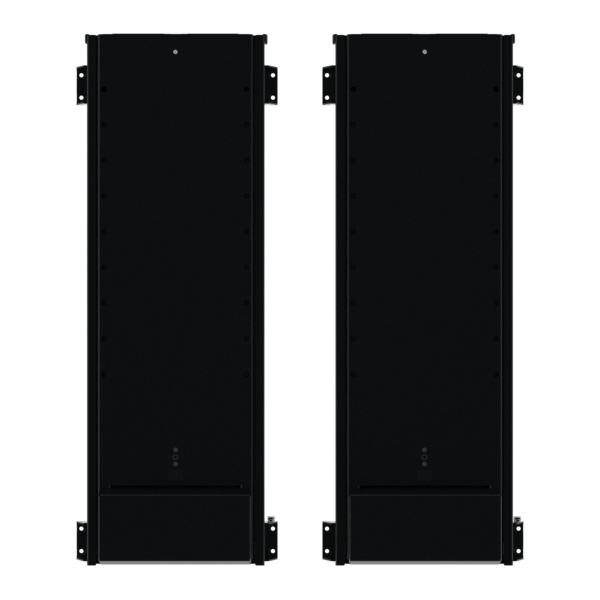

The TS1000C is a powder coated steel flat lift with electronic setting of min. and max height as well as anti-squeeze in both directions.

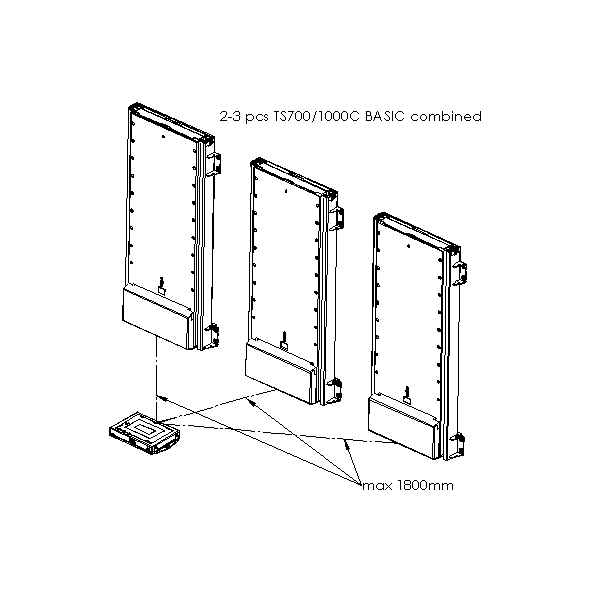

2 synchronized lifts, both with accessible hole pattern in the front.
RF remote control optional
Anti-squeeze: The pressure given before reverting is equal to the weight of the cabinet mounted.
Can be mounted upside down.
The TS1000C is a powder coated steel flat lift with electronic setting of min. and max height as well as anti-squeeze in both directions.
2 synchronized lifts, both with accessible hole pattern in the front.
RF remote control optional
Anti-squeeze: The pressure given before reverting is equal to the weight of the cabinet mounted.
Can be mounted upside down.
A Product can consist of several components.
Product Number: TS1000C_x2
Total Components: 5
Product Number: TS1000C_x2
Total Components: 5

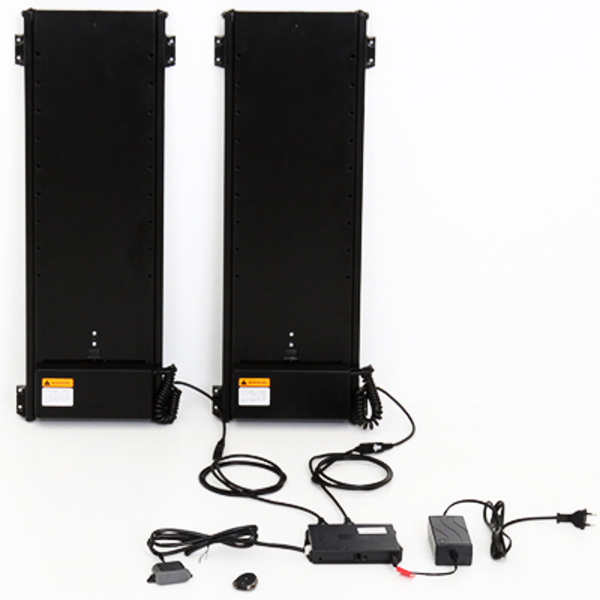

| Amount | Component | Description |
|---|---|---|
| 2 | TS1000C BASIC | Electric Flat Lift, black |
| 2 | R344410 | Extender wire |
| 1 | 7XPOWM | POW Control 1-3 |
If you wanna know more about the product data for this product click the file below.
Technical drawing for this product can be downloaded here.
Please note that there is both a pdf and a dwg version.
Technical Drawings DWG
Technical Drawings DWG
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved
