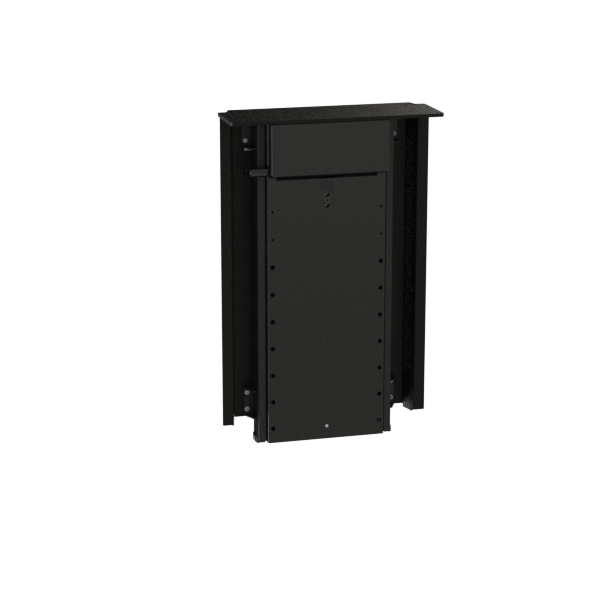

TS700B Floor/Ceiling (50/29 kg)

Item Number: TS700B 7BXX1 FM700 B1

The TS700B is designed for small to large LCD/plasma screens.

The lift has an incredible stroke compared to the required build-in height, which makes this unit usable for installation almost everywhere.

The stroke can also be adjusted to limit the stroke height and/or the stroke drop.
Controlled with rocker switch, but remote control with RF is optional.

Peak load of 50 kg and working load of 45/29 kg. (see specifications).

Show More

The TS700B is designed for small to large LCD/plasma screens.

The lift has an incredible stroke compared to the required build-in height, which makes this unit usable for installation almost everywhere.

The stroke can also be adjusted to limit the stroke height and/or the stroke drop.
Controlled with rocker switch, but remote control with RF is optional.

Peak load of 50 kg and working load of 45/29 kg. (see specifications).


A Product can consist of several components.
Product Number: TS700B 7BXX1 FM700 B1
Total Components: 2
Amount Component Description
1 TS700B 7BXX1 60-130 cm/45 kg, Electric Flat Lift, black
1 FM700 B1 Bracket TS700, floor mounting
If you wanna know more about the product data for this product click the file below.

The assembly instructions for this product can be found below.

Technical drawing for this product can be downloaded here. Please note that there is both a pdf and a dwg version.

Technical Drawings DWG
If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved

FAQ

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Specs


Minimum Height: 600 mm.Maximum Height: 1300 mm.Max Stroke: 700 mm.Adjustable Stroke: YesMax Load: 45 kg.Mounted upside down: 29 kg.Peak Load: 50 kg. (Motor thrust power)
Colour: BlackReverse Function: NoInputpower: 110-240 VAC/50-60 Hz AC Plug: EU/UK/US/NZ/AUS
RF Remote System: Optional R147880 + R315290Lidlifter: YesMounting Brackets: Optional MB002/MB003VESA: 200x200,200x100,600x400**,600x200**,600x100**,400x400**,400x300**,400x400***,400x200**,400x100**,300x300**,400x300***,400x200***,400x100***,300x300*****: only with MB002 mounted
***: only with MB003 mounted
