75-175 cm/100 kg, Electric Flat Lift, black

Item Number: TS1000C TWIN

The TS1000 TWIN is Plug & Play powder coated steel flat lift with electronic setting of min. and max. height.

RF remote optional.

Can be mounted upside down. Max. 50 kg.

The product is used when extra stability is needed. Heavy or large screen is here no problem. Build with two synchronized basic lift units.

Show More

The TS1000 TWIN is Plug & Play powder coated steel flat lift with electronic setting of min. and max. height.

RF remote optional.

Can be mounted upside down. Max. 50 kg.

The product is used when extra stability is needed. Heavy or large screen is here no problem. Build with two synchronized basic lift units.


A Product can consist of several components.
Product Number: TS1000C TWIN
Total Components: 6
Amount Component Description
1 MB004 B1 Monitor bracket, TS1000/2000
2 TS1000C BASIC Electric Flat Lift, black
2 R344410 Extender wire
1 7XPOWM POW Control 1-3
If you wanna know more about the product data for this product click the file below.
The assembly instructions for this product can be found below.

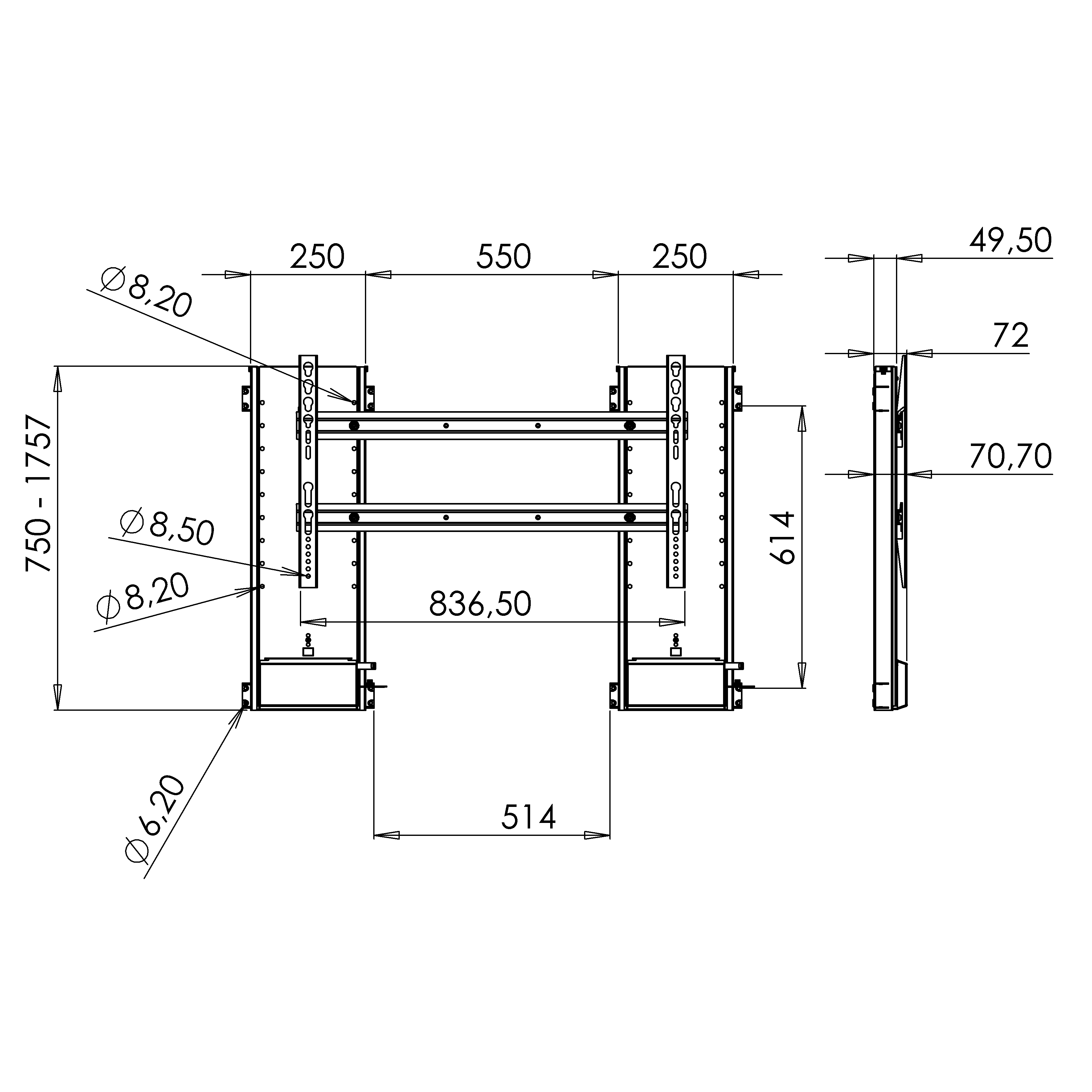

Technical drawing for this product can be downloaded here. Please note that there is both a pdf and a dwg version.

If you have any problems regarding this product, you can try using the troubleshoot file and see if the problem can be solved

FAQ

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Specs


Minimum Height: 750 mm.Maximum Height: 1750 mm.Max Stroke: 1000 mm.Adjustable Stroke: YesMax Load: 100 kg.Mounted upside down: 49 kg.Peak Load: 100 kg. (Motor thrust power)
Colour: BlackReverse Function: NoInputpower: 110-240 VAC/50-60 Hz AC Plug: EU/UK/US/NZ/AUS
RF Remote System: YesLidlifter: OptionalMounting Brackets: IncludedVESA: 200x200,200x100,+flex
